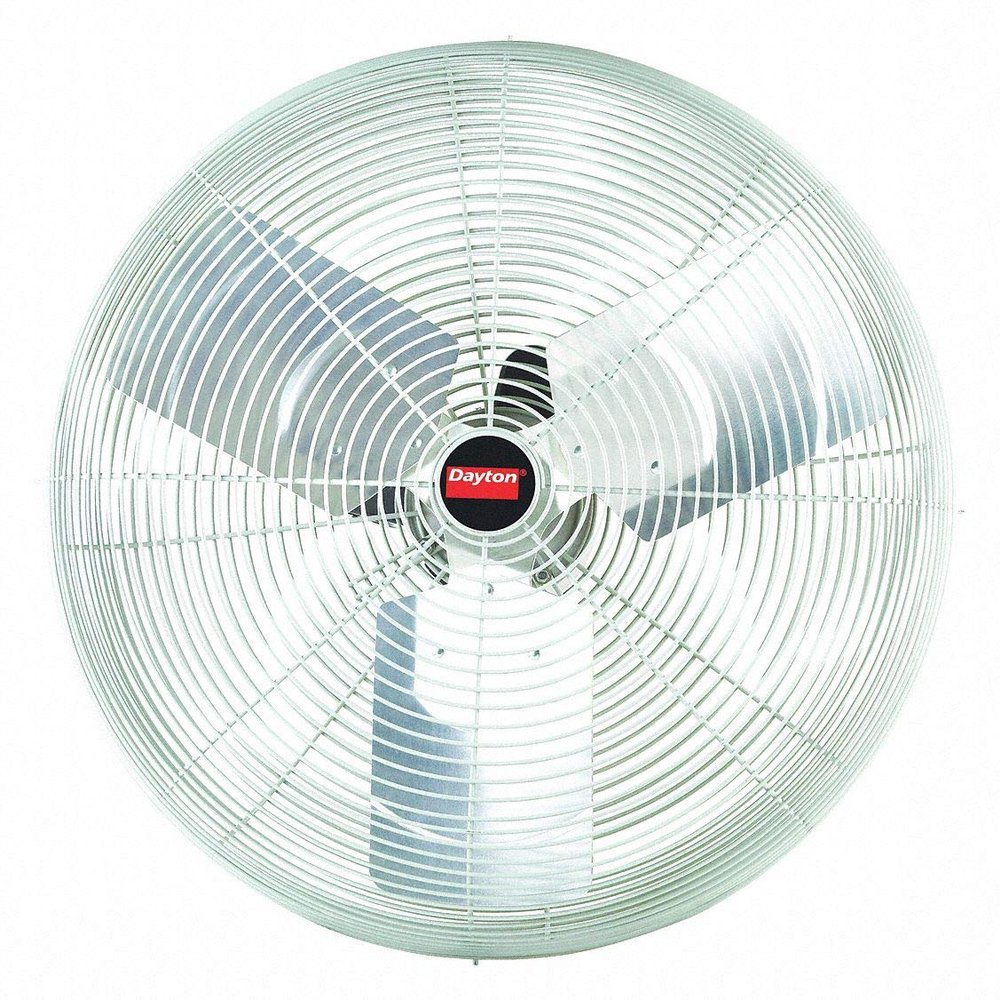

24" High Ambient Air Circulator/6400 cfm

Description

• Made in China

This high-ambient air circulator is designed to operate in environments with a maximum temperature of 140F. Each unit is hardwired. Use to keep employees cool in factories, warehouses, manufacturing facilities, and garages where excessively hot and demanding conditions exist. The circulator head features high-efficiency, corrosion-resistant propellers with aluminum blades, and a vertical tilt/locking adjustment for directional flow. A conduit box is provided for hard wiring.

Item: High Ambient Air Circulator
Blade Dia.: 24"
Mobile/Stationary: Stationary
Oscillating: No
Speeds: 1
Voltage: 115
Phase: 1
CFM High: 6400
Air Velocity (FPM) @ 20 Ft.: 465
Motor HP: 1/3
Motor RPM: 1100
Operating Amps: 3.6
Fan Mounting Location: Ceiling,IBeam,Pedestal,Wall
Fan Accessory Style: High Ambient
Fan RPM: 1100
Environmental Applications: Industrial
Assembled: Yes
Air Velocity (FPM) @ 10 Ft.: 650
Air Velocity (FPM) @ 40 Ft: 150
Air Velocity (FPM) @ 60 Ft.: 78
Sound Level: 71dBA
Max. Ambient Temp.: 140 Degrees F
Hz: 60
Watts: 400
Motor Type: Permanent Split Capacitor
Drive Type: Direct
Motor Enclosure: Totally Enclosed Air-Over
Motor Insulation: Class B
Thermal Protection: Auto
Bearing Type: Ball
Outside Dia.: 27"
Height: 27"
Width: 27"
Max. Depth: 13-3/4"
Number of Blades: 3
Blade Material: Mill Finish Aluminum
Shaft Dia.: 1/2"
Housing Material: Steel
Guard Material: Steel
Wire Guard Finish: Gray Polyester Powder Coated
Application: High Temp. Spot Cooling
Standards: UL, cUL, OSHA
Includes: Mounting Bolts, Conduit Box
