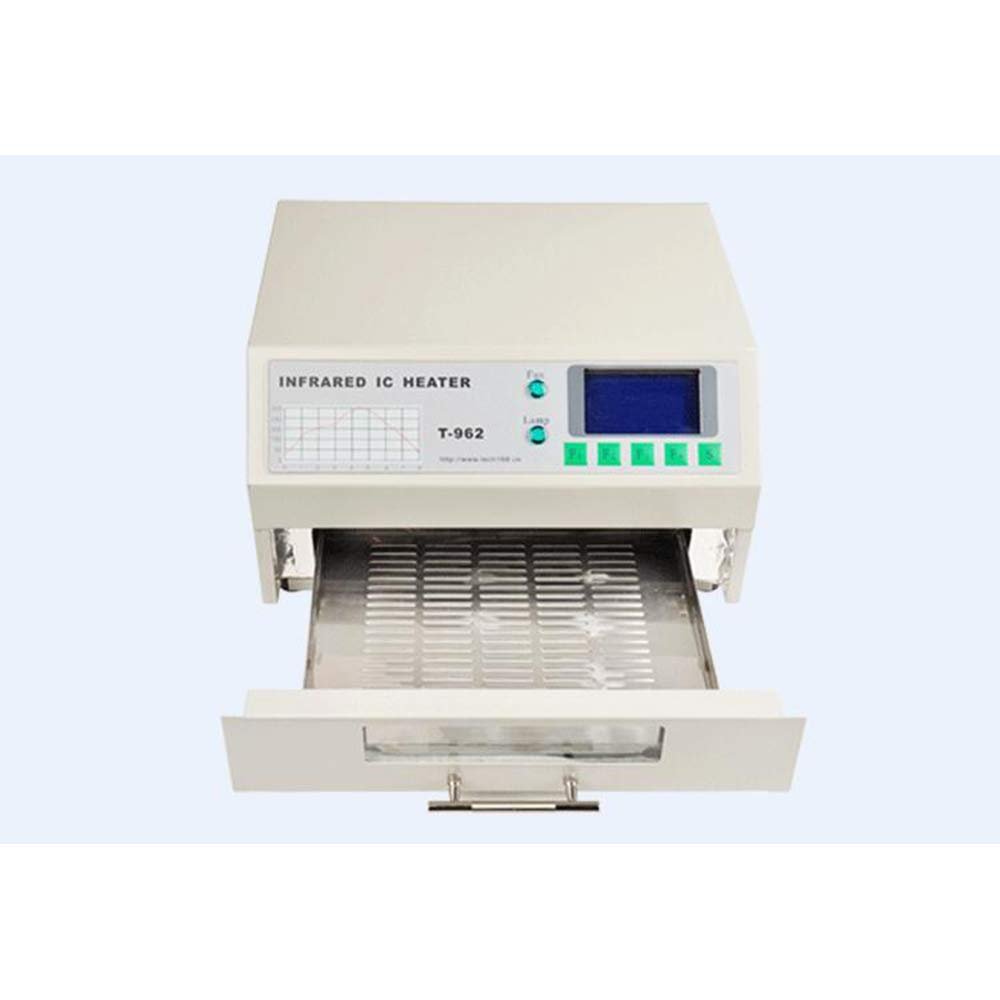

LeTkingok 110V Infrared IC Heater Automatic Reflow Oven SMD BGA Intelligent Reflow Welder 800W

Description

• The T962 is a micro-processor controlled reflow oven. The device is powered by standard 110VAC 50/60HZ (220VAC Model is available). User interface is implemented by way of T962 input keys and an LCD display. Pre-Set heating Modes are selected by user interaction with thermal cycle progress observed on LCD display.
• This self-contained reflow station allows safe soldering techniques and the manipulation of SMDBAG and other small electronic parts mounted on a PCB assembly. The T962 may be used to automatically re-flow solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.
• A windowed drawer is designed to hold the work-piece. Thermal cycle accuracy is maintained by closed loop micro-computer control with infrared heaters, thermocouple and circulating air.
• The T962 is simple to use, the soldering process is completely automatic defined by pre-defined thermal cycles,
• The T962 can solder most bosseyed or double-face PCB boards small parts, ie.: CHIPSOPPLCCQFPBGA etc; Can be used to the gum of the product solid, turning the circuit board hot aging, maintaining the PCB board and so on. Be satisfied to the needs of academe, smallorder run and extensively development of enterprise & company

Feature:
1.The T962 is a self-contained Micro-Processor controlled IC Heater and solder rework station.
2.Uses up to 800 watts of energy efficient Infrared heating and air circulation to re-flow solder in a large 180235mm area.
3.Parameters of Eight (8) Soldering cycles are Pre-Defined
4. Soldering cycles are keypad selected and progress displayed on the T962 LCD.
5. A single windowed drawer holds assemblies within the heating chamber,
6.The T962 design is ergonomic, practical and easily operated.
7.The entire soldering process is completes automatically from Preheat, Soak and Reflow through cool- down.
8. The T962 design is ergonomic, practical and easily operated.
9. The T962 is an economical rework solution from single runs to on-demand small batch production.
10. Light weight and a small footprint allows the T962 to be easily bench positioned transported or stored.
Parameter:
Voltage: AC 110V
Operating frequency: 60HZ
Maximum power: 800W
Heating method: infrared radiation and hot air mixed heating method
Operating system: Chinese and English bilingual operating system
Display mode: Graphic mode / text mode
Working mode: automatic reflow mode, adjustable constant temperature maintenance mode
Size: 31 * 29 * 17cm
Weight: 8Kg
Temperature curve section: preheat section / heating section / welding section / insulation section / cooling section
Effective welding area: 18 * 23.5cm
Preheat section temperature setting range: 70-150
Preheat section temperature set time: 0--5min
Heating section temperature setting range: preheating temperature -220
Heating section temperature setting time: 0-5min
Welding section temperature setting range: heating section temperature -300
Welding section temperature setting time: 30s
Insulation section temperature setting range: 0-50
